Product Attribute	Attribute Value
UNSPSC Code	39120000
Brand	Schneider Electric
Control Voltage	110 to 115 V
Current Rating	47 A
Dimensions	10.43 in H X 5.12 in W X 6.65 in D
Enclosure Type	IP20, IP23
Horsepower Rating	40 hp
Manufacturer Part Number	ATS22D47S6U
Maximum Operating Temperature	40 °C
Minimum Operating Temperature	-10 °C
Mounting Type	Panel Mount
Overall Depth	169 mm in
Overall Dimensions	265 x 130 x 169 mm
Overall Length	265 mm in
Overall Width	130 mm in
Phase	3 Phase
Primary Type	Motor Control
Series	Altistart ATS 22 Series
Size	A in
Special Features	Modbus Embedded
Supply Voltage	208-600 V
Temperature Operating Range	-10 to +40 °C °C
Terminal Type	Lugs
Type	Soft Start
Unit of Measure	EA
UPC Code	785901921509
Voltage Rating	208 to 600 V

Denron Industrial

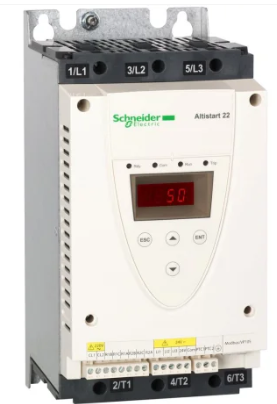

Schneider Electric 47A ATS22 Soft Starter 208-600V, 15HP at 230V

Product Attribute	Attribute Value
UNSPSC Code	39120000
Brand	Schneider Electric
Control Voltage	110 to 115 V
Current Rating	47 A
Dimensions	10.43 in H X 5.12 in W X 6.65 in D
Enclosure Type	IP20, IP23
Horsepower Rating	40 hp
Manufacturer Part Number	ATS22D47S6U
Maximum Operating Temperature	40 °C
Minimum Operating Temperature	-10 °C
Mounting Type	Panel Mount
Overall Depth	169 mm in
Overall Dimensions	265 x 130 x 169 mm
Overall Length	265 mm in
Overall Width	130 mm in
Phase	3 Phase
Primary Type	Motor Control
Series	Altistart ATS 22 Series
Size	A in
Special Features	Modbus Embedded
Supply Voltage	208-600 V
Temperature Operating Range	-10 to +40 °C °C
Terminal Type	Lugs
Type	Soft Start
Unit of Measure	EA
UPC Code	785901921509
Voltage Rating	208 to 600 V
