SEW Eurodrive S37 AMS56

DATASHEET

Helical-worm gear unit with adapter
Speed [r/min] : 1750 / 360
Total ratio [i] : 4.86 / finite
No. of teeth nom./denominator : 608/125
Ma max [Nm] : 29
Ta max [lb-in] : 255
Mounting position : M1B
Lubricant / -volume [l] : CLP 680 Miner.Oil / 0.25
Lubricant volume [US gal] : 0.065
Paint coat : Stainless Steel Gray
Gear unit : S37
Ma max G [Nm] : 33
Ma max G [lb-in] : 290
Output shaft end : 0.750x1.57 inch
Output shaft design : with keyway/with key
Design : Foot-mounted version
Breather variant : Standard
Delivery state : Breather valve mounted
Screw plug bore dimens. sheet : 02006__97
Documentation no. A : 27801357
Parts list : 022511296
Adapter : AMS56
Input flange : Centering diameter 114.3mm,
hole circle 149.2mm, bore 10.5 (NEMA)
Coupling/bore D1 : 0.625 inch (15.875mm)
Max. insertion depth (mot. SE) : 52.3mm
Nameplate : English / Imperial units
Nameplate position : Attached to the gear unit
Opera.instr. A lang./quantity : English / 0
Parts list/language/quantity : English / 0

Denron Industrial

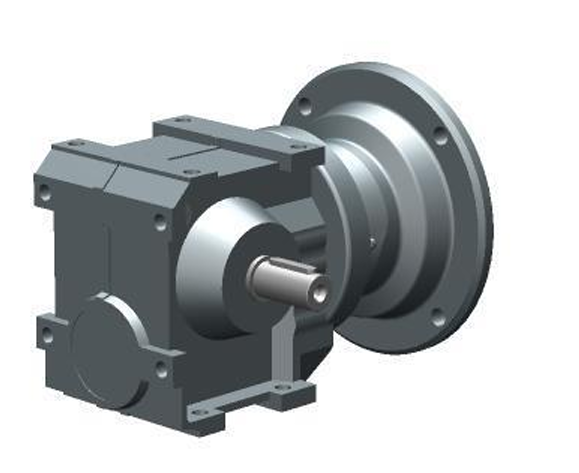

SEW Eurodrive S37 AMS56 Reducer with OS4 protection

$277,337.40

SEW Eurodrive S37 AMS56

DATASHEET

Helical-worm gear unit with adapter
Speed [r/min] : 1750 / 360
Total ratio [i] : 4.86 / finite
No. of teeth nom./denominator : 608/125
Ma max [Nm] : 29
Ta max [lb-in] : 255
Mounting position : M1B
Lubricant / -volume [l] : CLP 680 Miner.Oil / 0.25
Lubricant volume [US gal] : 0.065
Paint coat : Stainless Steel Gray
Gear unit : S37
Ma max G [Nm] : 33
Ma max G [lb-in] : 290
Output shaft end : 0.750x1.57 inch
Output shaft design : with keyway/with key
Design : Foot-mounted version
Breather variant : Standard
Delivery state : Breather valve mounted
Screw plug bore dimens. sheet : 02006__97
Documentation no. A : 27801357
Parts list : 022511296
Adapter : AMS56
Input flange : Centering diameter 114.3mm,
hole circle 149.2mm, bore 10.5 (NEMA)
Coupling/bore D1 : 0.625 inch (15.875mm)
Max. insertion depth (mot. SE) : 52.3mm
Nameplate : English / Imperial units
Nameplate position : Attached to the gear unit
Opera.instr. A lang./quantity : English / 0
Parts list/language/quantity : English / 0
